Instrumentation of the Lab-Scale HCRM
|
|
|
|

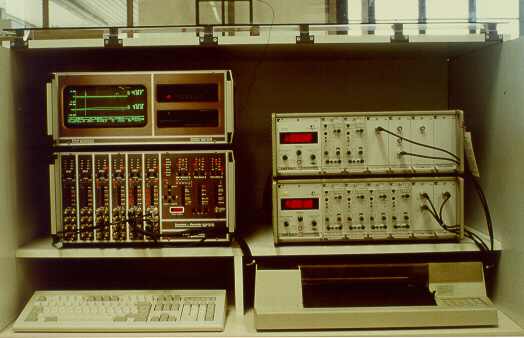

The instrumentation of the experimental equipment used for the throughput tests and for the pressure distribution tests is
shown below.
|
|
|
 |
|
|
Instrumentation of the Lab-scale High
Compression Roller Mill / Institute for Mineral Processing of the TU Clausthal (Germany, 1989)
|
|
|
|
|
Equipment/Type
|
Producer
|
Quantity
|
|
Displacement transducer TRS 25 A102
|
Novotechnik / Ostfildern
|
2
|
|
Turning angle transmitter P 4500
|
Novotechnik / Ostfildern
|
1
|
|
Torque measuring shaft IMn 2.5
|
Grünau /Markdorf
|
2
|
|
Load cell C2 50 kN
|
Hottinger Baldwin Messtechnik / Darmstadt
|
4
|
|
Slip ring transmitter SK 5
|
Hottinger Baldwin Messtechnik / Darmstadt
|
2
|
|
Carrier frequency amplifier KWS 506 D, a) 2 x 5 kHz, b) 4 x 5 kHz
|
Hottinger Baldwin Messtechnik / Darmstadt
|
2
|
|
D.C. voltage amplifier KWS 106 C
|
Hottinger Baldwin Messtechnik / Darmstadt
|
1
|
|
Transient recorder TRC / TRD, sixteen channels with computer
|
Krenz / Hirzenhain
|
1
|
|
|
|
|
|
