The throughput is dependent on material, graining, moisture content, roller diameter, roller length, circumferential speed, roller profile, grinding force and also on the type of feeding system, e.g. a plug screw or adjustable plates in the feeding funnel to throttle the material flow. Using the High Compression Roller Mill for the comminution of a given material it is especially interesting to know the dependence between throughput and roller speed. This dependence is shown as throughput characteristic M_t = M_t(u). Looking first of all at the cross section of the gap at a = 0 the equation for M_t is:

M_t = d_SrsLv_S           (1)

with M_t = throughput, d_S = solid volume portion at the narrowest gap, r = solid density, s = gap width, L = roller length, v_S = average material speed at a = 0.

In the narrowest gap there is a non-slip material transport as lon as the compaction is limited and values of d_S = 0,85 to 0,90 are not exceeded [13, 14]. Then v_S can be replaced by the circumferential roller speed u:

M_t = d_SrsLu            (2)

For the specific throughput n applies:

n = (M_t /rDLu) = d_S (s/D) = d_S s         (3)

As is generally known the throughput does not increase proportional with the circumferential speed. Therefore the gap width s respectively its relative value s as well as the solid volume portion d_S must be dependent on the roller speed u.

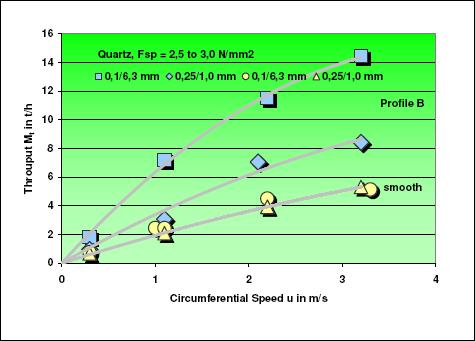

In the following pictures the throughput characteristics of quartz and limestone with smooth and corrugated rollers (profile B: 1-8-3/4) are presented. The all show the typical convex curved gradient. Significant throughput increases result from the moulded rollers. In addition material specific differences can be seen.
